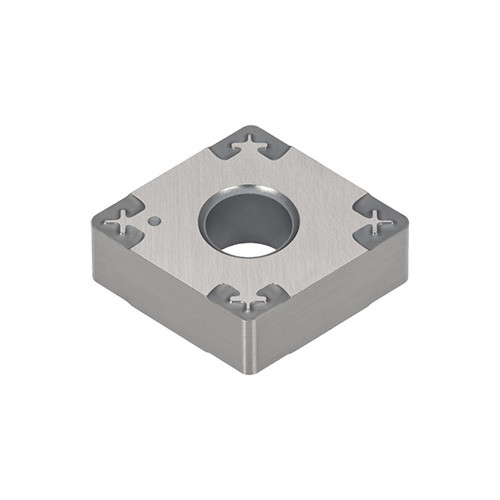

CNGG120408-01 NS520
Negative relief ang., G class, 80deg rhombic insert, for precision finishing
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.02 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Nega Type-01 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | NS520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm | Unit | M |
Product Features
| Family Description | Negative relief ang., G class, 80deg rhombic insert, for precision finishing | FamilyName | CNGG-01 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0570
Name
Turning Indexable Inserts
FamilyName
CNGG-01
BrandName
Tungaloy
