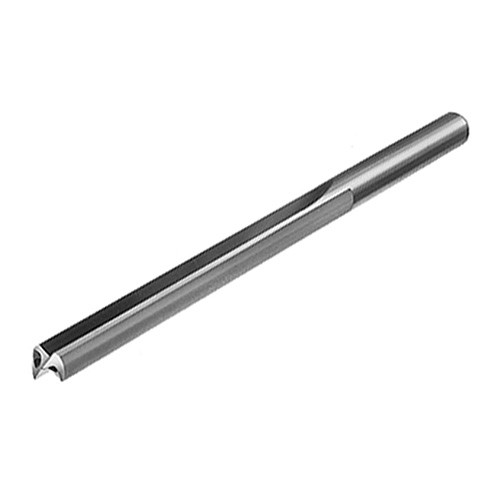

FDC0840S G1F
Straight flute solid drill for cast iron and aluminum alloy, with coolant hole, L/D = 5

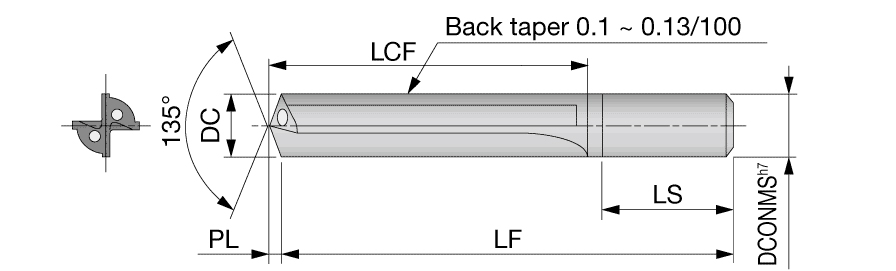

| Drill Bit Size / Cutting Diameter (DC) | 8.4 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.4 mm | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Cast Iron | | Grade | G1F |
| Application | | General Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Usable Length (LU) | 43.7 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 116.74 mm |
| Point Angle (SIG) | 135 Degrees | Body Material | Carbide |
| Point Length (PL) | 1.74 mm | Unit | M |
| Shank Length (LS) | 44 mm |
Product Features
| Family Description | Straight flute solid drill for cast iron and aluminum alloy, with coolant hole, L/D = 5 | COO | JAPAN |
| Remarks | 5.00 =< DC =< 6.00 / DC tolerance: +0.020 / +0.010 6.00 < DC =< 16.00 / DC tolerance: +0.025 / +0.015 |
Shipping Info
Weight per item
0.0840
Related Documentation

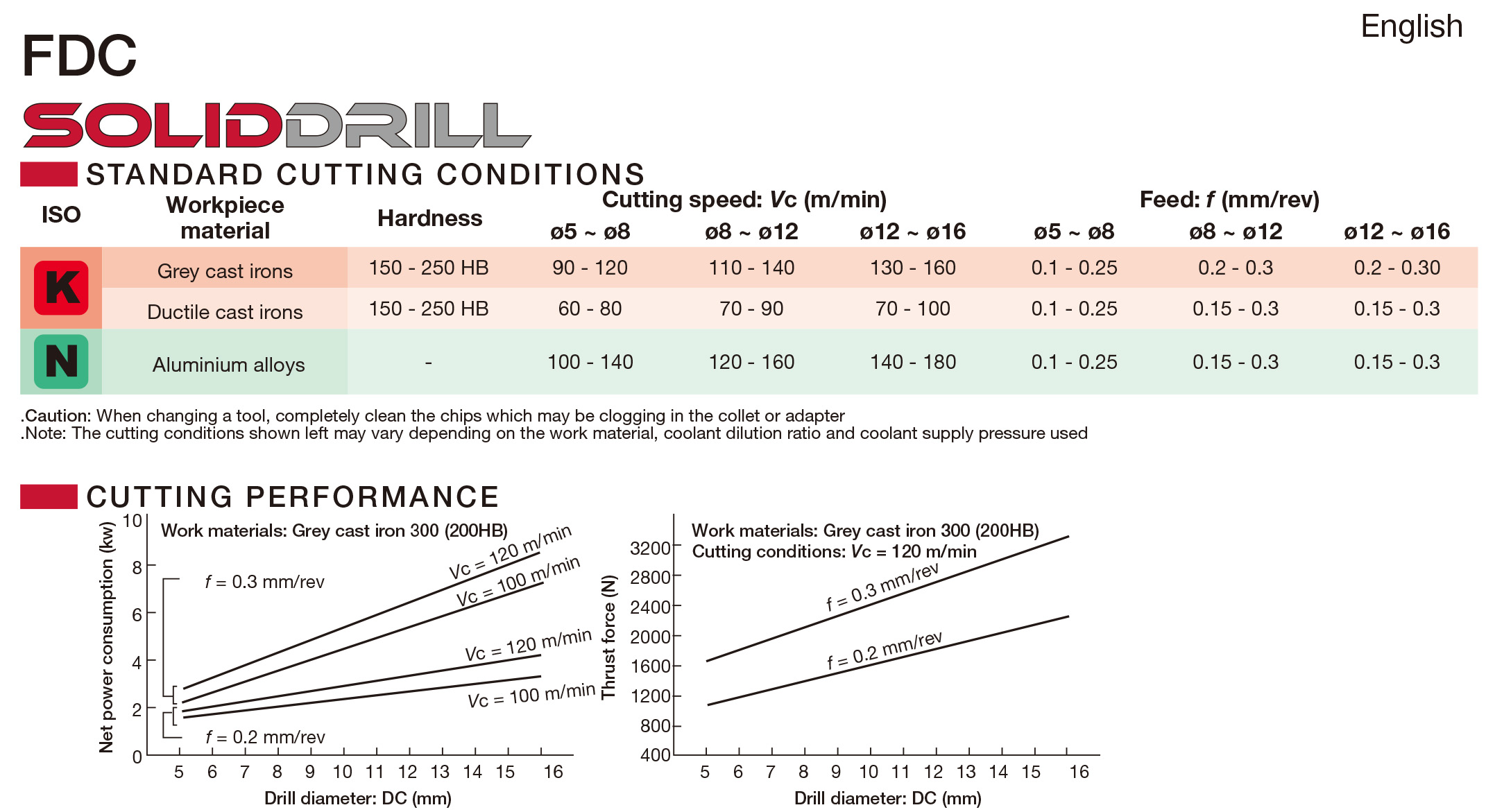

[Coolant] @Supply coolant through the inside of a drill. @The coolant pressure should be 0.5 to 1 MPa. @Use water-soluble coolant containing a large amount of extreme pressure additive.
