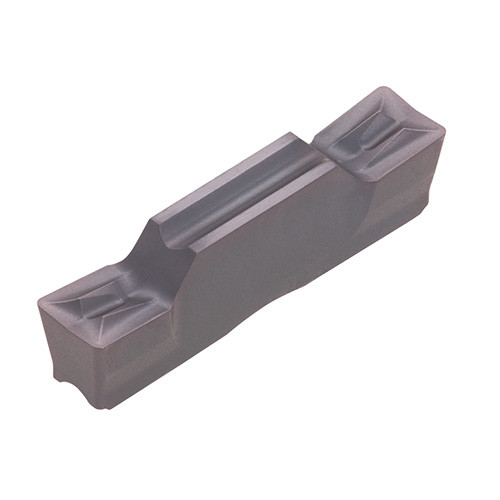

DTM2-020 AH8005
Double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.05mm

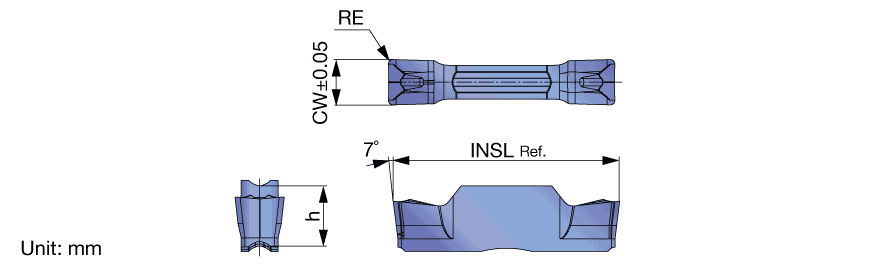

| Cutting Width (CW) | 2 mm | Application | | Inserts | |
| Insert Length (INSL) | 20 mm | Tool Type | Groove-Turn Utility Inserts |
| Corner Radius (RE) | 0.2 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Coating | AlTiN |
| Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Grade | AH8005 | Unit | M |
Product Features
| Family Description | Double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.05mm | FamilyName | DTM |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Face Groove/Turn Indexable Inserts
FamilyName
DTM
BrandName
Tungaloy
