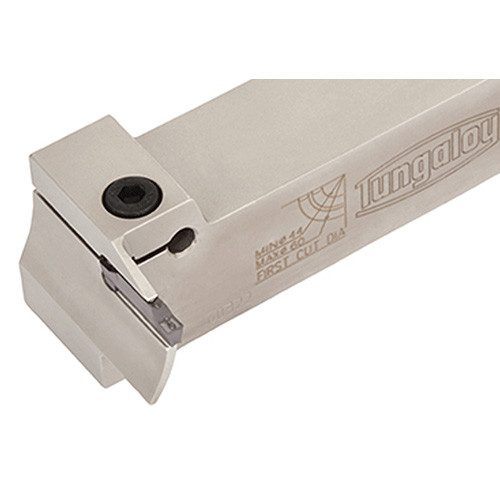

CTFVR2525-3T10-034050
Perpendicular toolholders for deep face grooving and turning

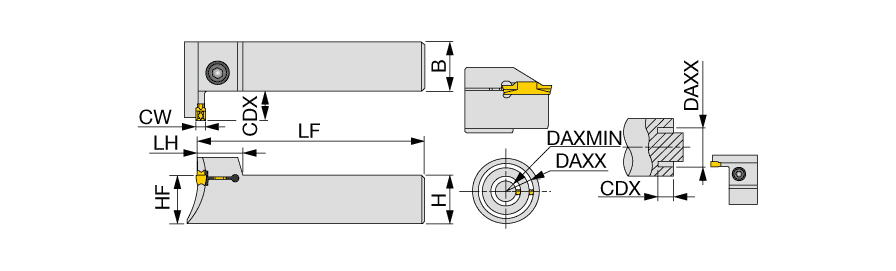

| Shank Width (B) | 25 mm | Head Length (LH) | 18 mm |
| Shank Height (H) | 25 mm | Minimum Bore Diameter (DMIN) | 34 mm |
| Cutting Width (CW) | 3 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Overall Length (OAL) | 150 mm | Functional Width (WF) | 35 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm | Measurement Type | Metric |
| Application | | Face grooving | | Unit | M |
Product Features
| Family Description | Perpendicular toolholders for deep face grooving and turning | FamilyName | CTFVR/L |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | SOUTH KOREA |
Shipping Info
Weight per item
0.8200
Name
Face Groove/Turn Indexable Holders
FamilyName
CTFVR/L
BrandName
Tungaloy
Related Documentation

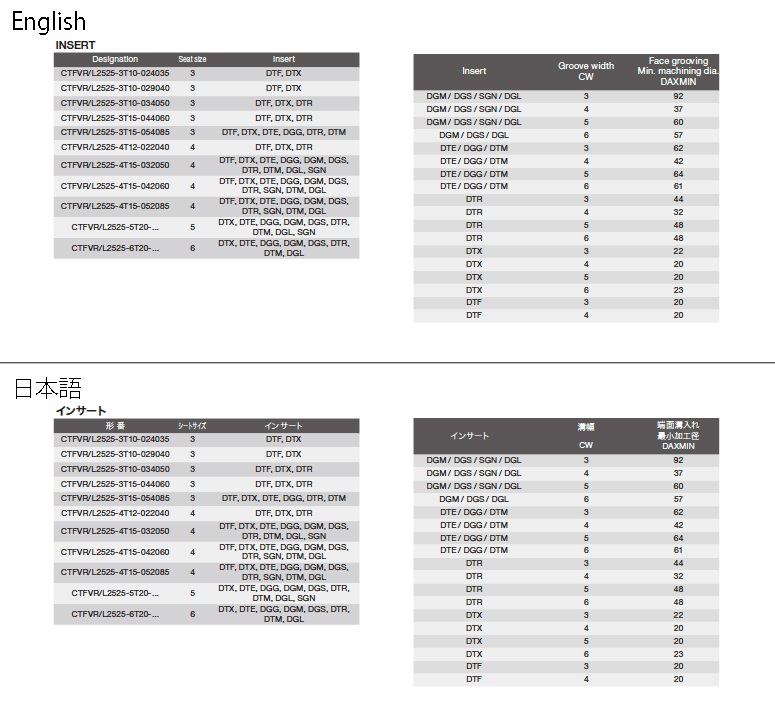

Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
