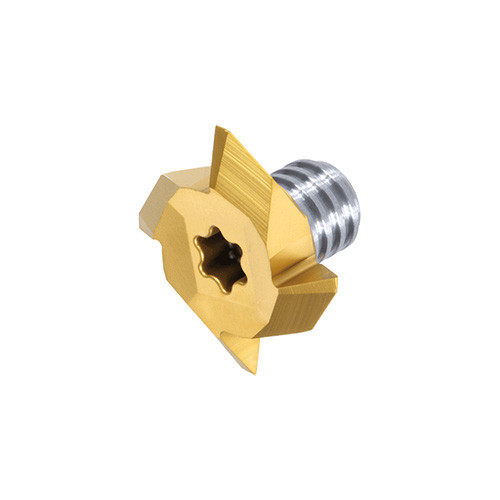

VTR160L12IS15-3S06 GH730

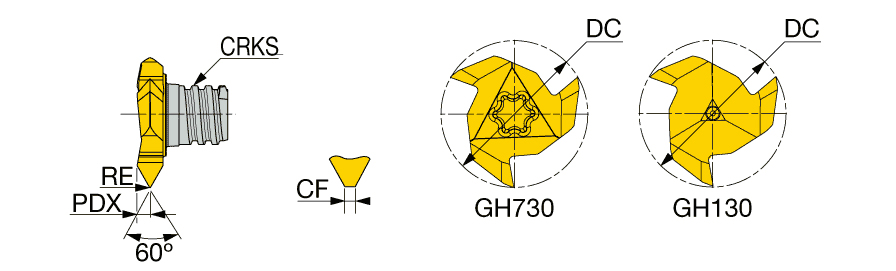

Interchangeable solid carbide milling heads for 60 deg partial profile thread milling.

Connection Thread Nominal Size Machine Side (THSZMS) | S06 | Tool Type | Solid carbide thread mills |
Cutting Diameter (DC) | 15.7 mm | Threads per Inch Maximum (TPIX) | 12.7 |
Flute Count (NOF) | 3 | Threads per Inch Minimum (TPIN) | 16.9 |
Coating | TiCNO | Thread Pitch Minimum (TPN) | 1 mm |
Grade | GH730 | Thread Pitch Maximum (TPX) | 1.5 mm |
Corner Radius (RE) | 0.05 mm | Functional Length (LF) | 1.77 mm |
Applicable Material | | Steel | Stainless Steel | | Measurement Type | Metric |
Application | | Ext. Thread Milling | Int. Thread Milling | | Body Material | Carbide |
Cutting Edge Material | Carbide | Unit | M |

Product Features
Family Description | Interchangeable solid carbide milling heads for 60 deg partial profile thread milling. | COO | ISRAEL |
Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Weight per item
0.0000
