A07080-SMR4

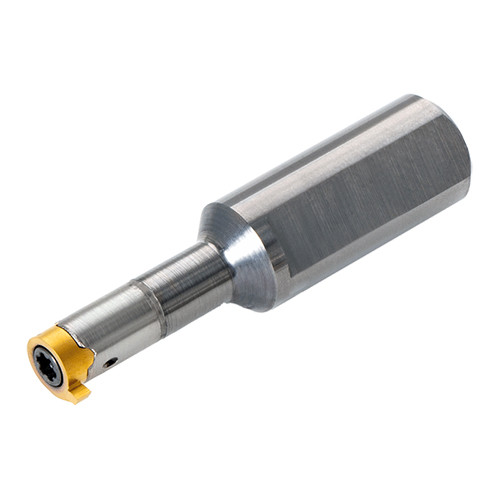

TinyMiniTurn internal grooving and threading toolholder

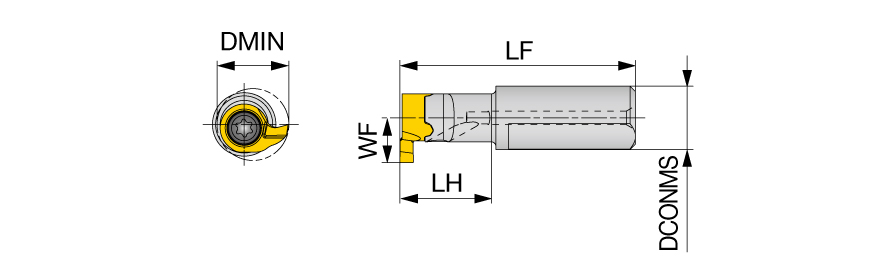

| Cutting Width Minimum (CWN) | 1 mm | Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Width Maximum (CWX) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 6.4 mm | Application | | Internal grooving | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 5 mm | Body Material | Steel |
| Functional Width (WF) | 2.95 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 24 mm | Measurement Type | Metric |
| Head Length (LH) | 8 mm | Unit | M |
Product Features
| Family Description | TinyMiniTurn internal grooving and threading toolholder | FamilyName | A/E-SMR |
| Remarks | DMIN and WF differ based on each insert geometry. For DMIN and WF, please refer to insert size table. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
A/E-SMR
BrandName
Tungaloy
