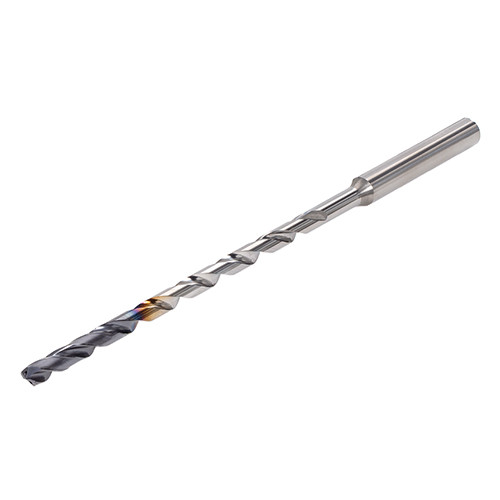

DSW030-055-06CI16 AH725
Solid carbide drill with coolant hole, L/D = 16
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Tool Type | solid carbide Drills |
| Coating | TiAlN | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | General Drilling | | Usable Length (LU) | 55 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 100 mm |
| Point Angle (SIG) | 135 Degrees | Body Material | Carbide |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Solid carbide drill with coolant hole, L/D = 16 | COO | USA |
