AV C5 SEM22 48X220
Anti-vibration shell mill holder with coolant holes and TungCap (ISO 26623-1) shank

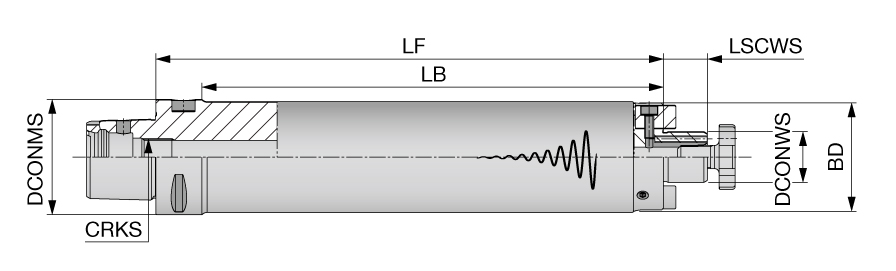

| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Application | | Face contact interface | |
| Shank Size (SS) | C5 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 200 mm | Measurement Type | Metric |
| Body Diameter (BD) | 48 mm | Body Material | Steel |
| Overall Length (OAL) | 220 mm | Unit | M |
Product Features
| Family Description | Anti-vibration shell mill holder with coolant holes and TungCap (ISO 26623-1) shank | FamilyName | AV C-SEM |
| Remarks | These holders have slots for data chip. | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
0.0000
Name
Shell Mill Holders
FamilyName
AV C-SEM
BrandName
Tungaloy
